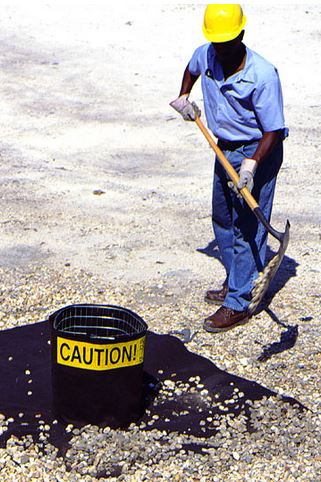

Ultra-Basin Guard
Ultra-Basin Guard
23 junio, 2015
Show all
Ultra-Hydrokleen

Ultra-Hydrokleen


Advanced Catch Basin Filter Captures Multiple Pollutants , Also Provides Sampling Capability.

Código: Ultra-Hydrokleen. Categorías: , , .
Descripción

  • Removes hydrocarbons, heavy metals, sediments and other organics from stormwater and industrial runoff.
  • Exceeds 80% sediment removal efficiency.
  • Patented filtration system allows different filter media to be used together to remove targeted pollutants.
  • Choose a mix of filters to removes hydrocarbons / oil, chemicals, odor, phosphorus and heavy metals from water flow (must be ordered separately).
  • By-pass system prevents flooding or ponding during high-flow storm events.
  • Excellent post-construction control for drains that are more susceptible to large concentrations of contaminants ("Hot Spots").
  • Units available for round or square catch basin grates. Custom sizes available.*.
  • Considered a "true filter" and has been verified by the EPA's ETV program.  Click here to download the report.
  • Helps comply with NPDES, 40 CFR 122.26 (1999) when used as Best Management Practice in Storm Water Pollution Prevention Plans.

Mix and match filter media depending on your specific needs.  HydroKleen is the only catch basin filter that allows you to use more than one type of filter media.*

  • Sorb 44 — Used to remove oil and other hydrocarbons.
  • Phos Filter — Excellent for removal of phosphorous.
  • Activated Carbon — Excellent "polishing media". Helps remove certain chemicals, hydrocarbons and odors.
  • Heavy Metal Removal — Custom filter media blend helps remove zinc, lead, copper and other harmful, heavy metals.
  • Other types of media available for custom applications.

NEW SAMPLING OPTION

Convenient and effective means to obtain samples of the post-treatment effluent from the Ultra-HydroKleen to comply with monitoring and testing requirements.

  • Sampling Option provides standard HydroKleen with modifications to allow the Ultra-Universal Sampler (sold separately) to pull "post-treatment" water samples from below the unit's filters.
  • Take real-time samples during storm events.
  • Access area stays closed until a sample is desired.
  • Simple sampling — No need to remove the Ultra-Hydrokleen to take a sample (in many cases, even the grate can remain in place). Simply slide open the sampling port and insert the Universal Sampler.

Ultra-Hydrokleen
Flat Frame * Recessed Frame *
Part # :9870

Fits Drains:20" – 25 " (508 mm x 635 mm)

Part # :9873

Fits Drains:20" – 25 " (508 mm x 635 mm)

Part # :9871

Fits Drains:26" – 33" (660 mm x 838 mm)

Part # :9874

Fits Drains:26" – 33" (660 mm x 838 mm)

Part # :9872

Fits Drains:34" – 48" (863 mm x 1,219 mm)

Part # :9875

Fits Drains:34" – 48" (863 mm x 1,219 mm)

Part # :9478 Fits Drains:Custom
Treatment flow rate:  35-40 GPM
Flow rate with by-pass:  160 CFM
Hydrocarbon Absorption Capacity:  Minimum of 1 gallon
Options
Part# 9876 - Sampling Option
Part# 9247 - Universal Sampler
Media* (must be ordered separately)
Part# 9463 - Activated Carbon (MSDS)
Part# 9462 - Sorb 44 (MSDS)
Part# 9461 - Phos Filter (MSDS)
Part# 9460 - Heavy Metal Removal (MSDS)
* Note: Ultra-HydroKleen units are custom made to fit each individual catch basin. The final pricing is based on the configuration of the frame (Flat or Recessed) and number of required Filter Media (2 or 3). This cannot be determined until the end user has submitted the completed Measurement Instructions and Filter Media Selection forms. Please email or contact us at 800-353-1611 for more information.

Instructions

How to measure for HydroKleen
Filter media selection form
Installation instructions for HydroKleen
Installation instruction for HydroKleen replacement media
Maintenance and Care

Video

Video clip of HydroKleen in action (high-res)
Video clip of HydroKleen in action (low-res)
How to order the right sized HydroKleen:
See video
