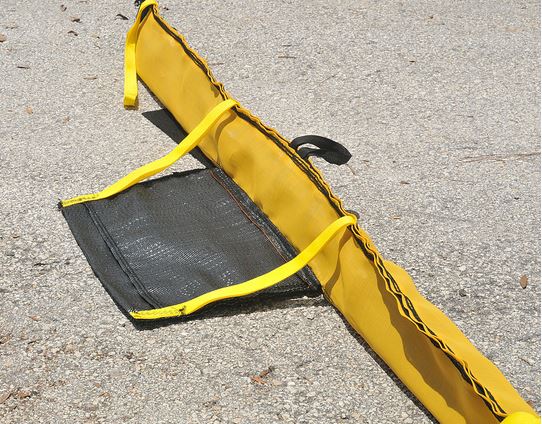

Ultra-Gutter Guard Plus
Ultra-Gutter Guard Plus
23 junio, 2015
Oil & Debris Blocker
Oil & Debris Blocker
23 junio, 2015
Show all
Ultra-Inlet Guard and Inlet Guard Plus

Ultra-Inlet Guard and Inlet Guard Plus


Protect Drains And Inlets WITHOUT Lifting Any Grates.

Código: Ultra-Inlet Guard and Inlet Guard Plus. Categorías: , , .
Descripción

Protect Drains And Inlets WITHOUT Lifting Any Grates.

  • Keeps dirt, sand, sediment, trash and debris out of drains.
  • Quick and easy installation using built-in magnets — no more lifting of heavy catch basin grates.
  • Available in several sizes for street drains, combination drains and trench drains. Custom sizes also available.
  • Heavy-duty, reinforced material (non-woven, polyester spun) allows up to 192 gal/ft2/min. through drains.
  • Low profile design can be driven over and is unobtrusive to traffic and personnel.
  • Ultra-Inlet Guard Plus also available. Includes built-in overflow port to help prevent flooding and/or ponding during heavy rainfall.
  • Geotextile material helps remove oil and other hydrocarbons from stormwater flow.
  • Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.

Ultra-Inlet Guard and Inlet Guard Plus

ULTRA - INLET GUARD (No Overflow Port )

Part# : 9170

Dimensions:  24" x 24" (610 mm x 610 mm)

Part# : 9171

Dimensions: 24" x 36" (610 mm x 915 mm)

Part# : 9172Dimensions:  24" x 48" (610 mm x 1,220 mm)
Part# : 9173Dimensions:  24" x 24" (610 mm x 610 mm) Curb-Style (for combination drains)
Part# : 9174Dimensions:  24" x 36" (610 mm x 915 mm) Curb-Style (for combination drains)
Part# : 9175

Dimensions:  24" x 48" (610 mm x 1,220 mm) Curb-Style (for combination drains)

ULTRA - INLET GUARD PLUS (Includes Built-in Overflow Port )

Part# : 9160

Dimensions:  24" x 24" (610 mm x 610 mm)

Part# : 9161Dimensions: 24" x 36" (610 mm x 915 mm)
Part# : 9162Dimensions: 24" x 48" (610 mm x 1,220 mm)
Part# : 9163

Dimensions: Curb-Style (for combination drains) 24" x 24" (610 mm x 610 mm)

Part# : 9164

Dimensions: Curb-Style (for combination drains) 24" x 36" (610 mm x 915 mm)

Part# : 9165
Dimensions: Curb-Style (for combination drains) 24" x 48" (610 mm x 1,220 mm)
See this product in our e-catalog
Material Specifications
