Ultra-Containment Berms, Stake Wall Model
Portable Secondary Containment Berm For Drums, Frac Tanks, Equipment And Vehicles
Descripción

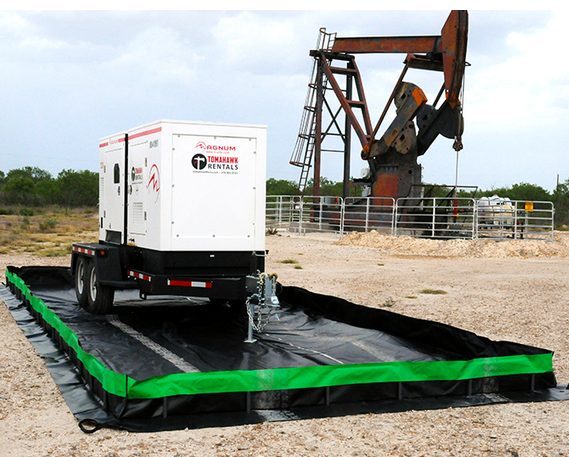

The Ultra-Containment Berm, Stake Wall Model is a portable berm that helps capture leaks, drips, and spills to prevent them from contaminating and polluting the environment.
The Stake Wall Model’s design features flexible polyurethane stakes that allow the sidewalls to spring into place automatically –even after being bent in either direction. This makes it perfect for spill sites or containment areas, because it allows Drums and Trucks to roll over the walls without breaking their upright structure.
Key Features:
- Easily folds for transport
- No set-up required – just unfold and the sidewalls automatically spring into their vertical position
- Custom sizes available.
- Vertical sidewall supports located every 12". Each Support features a built-in "living hinge" at its base, which allows sidewalls to collapse in either direction. Collapsed sidewalls spring back automatically.
- Meets SPCC and EPA Container Storage Regulation 40 CFR 264.175.
Ultra-Containment Berms, Stake Wall Model
| Part# |
Dimensions ft. (m)
Wall Height:
12 in. (305 mm)
|
Containment
Capacity
gal. (L)
|
Weight
lbs. (kg)
|
| 8208 | 4 x 6 (1.2 x 1.8) | 179 (678 ) | 38.0 (17.0) |
| 8209 | 6 x 6 (1.8 x 1.8) | 269 (1,018) | 49.0 (22.0) |
| 8210 | 10 x 10 (3.0 x 3.0) | 748 (2,831) | 92.0 (42.0) |
| 8220 | 10 x 20 (3.0 x 6.1) | 1,496 (5,663) | 150.0 (68.0) |
| 8221 | 10 x 30 (3.0 x 9.1) | 2,244 (8,495) | 208.0 (94.0) |
| 8222 | 10 x 40 (3.0 x 12.2) | 2,992 (11,326) | 266.0 (120.5) |
| 8223 | 10 x 50 (3.0 x 15.2) | 3,740 (14,157) | 325.0 (147.0) |
| 8224 | 12 x 12 (3.7 x 3.7) | 1,077 (4,077) | 113.0 (51.0) |
| 8225 | 12 x 20 (3.7 x 6.1) | 1,795 (6,795) | 162.0 (73.5) |
| 8226 | 12 x 30 (3.7 x 9.1) | 2,692 (10,190) | 223.0 (101.0) |
| 8227 | 12 x 40 (3.7 x 12.2) | 3,590 (13,590) | 284.0 (129.0) |
| 8228 | 12 x 50 (3.7 x 15.2) | 4,488 (16,989) | 345.0 (156.5) |
| 8229 | 12 x 60 (3.7 x 18.3) | 5,385 (20,382) | 406.0 (184.0) |
| 8230 | 15 x 15 (4.6 x 4.6) | 1,683 (6,371) | 151.0 (68.5) |
| 8231 | 15 x 20 (4.6 x 6.1) | 2,244 (8,495) | 184.0 (83.5) |
| 8232 | 15 x 30 (4.6 x 9.1) | 3,366 (12,742) | 250.0 (113.0) |
| 8233 | 15 x 40 (4.6 x 12.2) | 4,488 (16,989) | 317.0 (144.0) |
| 8211 | 15 x 50 (4.6 x 15.2) | 5,610 (21,234) | 383.0 (174.0) |
| 8212 | 15 x 66 (4.6 x 20.1) | 7,405 (28,028) | 490.0 (222.0) |
| Protect Your Containment Berm Investment | |||
| See this product in our e-catalog | |||
| Not sure what model to choose? Check out our Containment Berm Side-By-Side Comparison. | |||
| Material of Construction: Copolymer 2000™, an ethylene copolymer, is standard. Copolymer 3000™, XR5, polyurethane and other materials are also available on a custom basis. Option: Ground Tarps, Track Belts, Self Bailer. |
|
| Product Instructions / Material specifications | |
| See this product in our e-catalog | |
