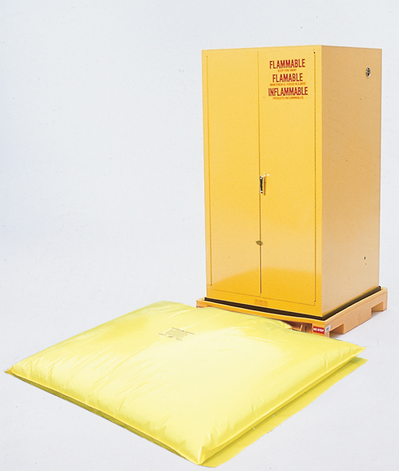

Ultra-Safety Cabinet Bladder Systems
Ultra-Safety Cabinet Bladder Systems
17 junio, 2015
Ultra-Spill Collectors
Ultra-Spill Collectors
17 junio, 2015
Show all
Ultra-Self Bailer

Ultra-Self Bailer


Passively Filter Hydrocarbons From Stormwater in Outdoor Containment Products

Descripción
  • The best protection for non-monitored containment sites.
  • Helps eliminate problems associated with the collection of rainwater in outdoor containment products.
  • Simple installation - can be connected to any outdoor containment product.
  • Hydrocarbon "sheens" and modest spills are captured - clean stormwater drains through the outflow port.
  • Larger or concentrated spills activate "auto-shutoff" mechanism.
  • Manual shutoff valve can be used to secure all draining operations, change out the filter cartridge.
  • Filters are quickly and easily replaced.
Ultra-Self Bailer
Part #: 9935 - standard Part #: 9937 - large capacity
Dimensions: 28"L x 3½" dia.
(712 mm x 89 mm dia.)
Dimensions: 36"L x 4½" dia.
(915 mm x 115 mm dia.)
Weight: 2 lbs. (1 kg) Weight: 7 lbs. (3 kg)
Flow Rate: 7.5 gallons per hour* (29 L per hour) Flow Rate: 22 gallons per hour* (84 L per hour)
Capacity: 6 - 8 oz Capacity: 21 - 28 oz
Cut-off Loss: 7 - 10 oz† Cut-off Loss: 26 - 32 oz†
Material: PVC Material: PVC
Options:  Replacement Filter Cartridges 2-Pack Part #9936 Options: Replacement Filter Cartridges 1-Pack Part #9938
Part #: 9926 - XL Part #: 9928 - XXL
Dimensions: 39"L x 6.5" dia.
(991 mm x 166 mm dia.)
Dimensions: 43"L x 9" dia.
(1093 mm x 229 mm dia.)
Weight: 11 lbs. (5 kg) Weight: 16 lbs. (7 kg)
Flow Rate: 42 gallons per hour* (159 L per hour) Flow Rate: 55 gallons per hour* (209 L per hour)
Capacity: 140 - 156 oz Capacity: 200 - 226 oz
Cut-off Loss: 150 - 165 oz† Cut-off Loss: 215 - 228 oz†
Material: PVC Material: PVC
Options: Replacement Filter Cartridge 1-Pack Part #9927 Options: Replacement Filter Cartridge 1-Pack Part #9929

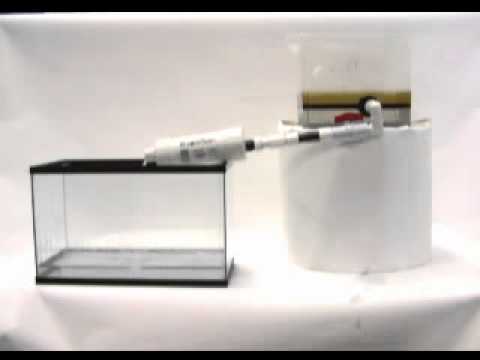

See video
*At 2" WC (Head Pressure)†Cut-off loss is the approximate amount of hydrocarbons that may pass through the Self-Bailer prior to complete shut-off in the event of a spill.
